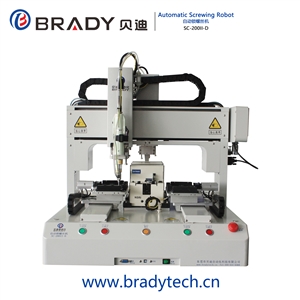

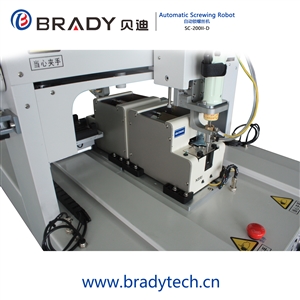

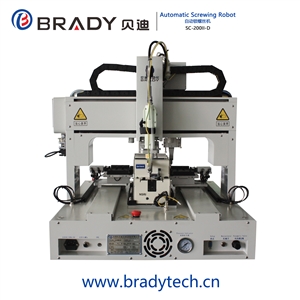

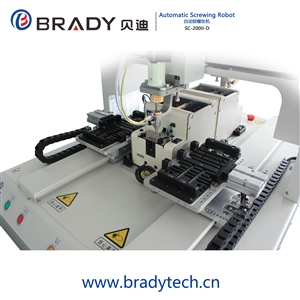

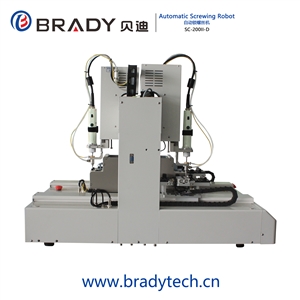

Apply to all kinds of electronic products screw locking. Such as Smartphone, Wireless telephone, Calculator, Navigation screen, Sounds box, Camera, Small appliances, Toys etc.
With the smart inspection function. It includes the inspection of missing locked, loose screw and other unstable locked situations.
With the function of inspection unstable screws and automatic self-repair. To avoid take out the product from fixture during screw locking, to improve the pass-through rate.
Excellent flexibility. Use the all-powerful fixture which can suit for multi type screws.
Excellent versatility. It can be changed the feeder mode, nozzle and screwdriver bit to suit for multi type screws from M1.0 ~M4.0.
With the smart inspection function. It includes the inspection of missing locked, loose screw and other unstable locked situations.
With the function of inspection unstable screws and automatic self-repair. To avoid take out the product from fixture during screw locking, to improve the pass-through rate.
Excellent flexibility. Use the all-powerful fixture which can suit for multi type screws.
Excellent versatility. It can be changed the feeder mode, nozzle and screwdriver bit to suit for multi type screws from M1.0 ~M4.0.
The machine can be inserted in the production line conveniently because of the compact shape. With the function of loading in front and unloading from rear to save the labor.
With double XY axis design, it can works alternation. Without loading and unloading time, it can realize the max production efficiency.
Outline size：600*840*640mm （L*W*H）
Working range ：170*255*70mm（X*Y*Z）
Drive mode：6 axis step motor
Position accuracy ：±0.02mm
Slider：HIWIN
Control ：PLC + TP
Screw feeding ：vacuum pick up
Program ：teaching mode
Locked efficiency：Less than 1.2S / pcs
Memory size：14group， 40steps/group （to be modified)
COM： USB
Voltage：220VAC、50HZ
Air pressure：0.4Mpa
Weight：60kg
